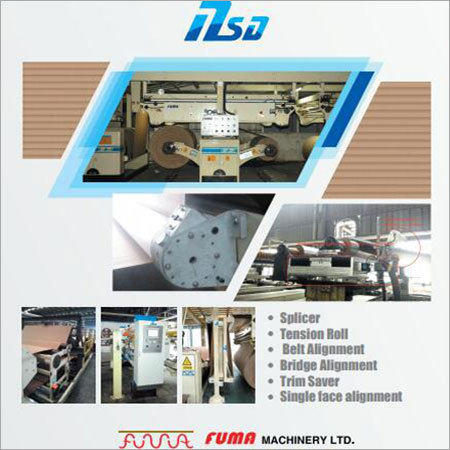

Bridge Tension Control System

Bridge Tension Control System
Bridge Tension Control System
Product Code : BTC 122
Brand Name : FUMA
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

With the facilitation of highly advanced production unit, this Bridge Tension Control System is highly acclaimed for its excellent functionality. This is used to maintain the tension in fabrics. It is efficiently manufactured using supreme grade materials at our well-structured production unit under the observation of our deft team. The offered Bridge Tension Control System is available in a range of technical specifications as per the application needs of our customers.


  • Sturdy construction
  • High operational fluency
  • Impeccable performance
  • Splicer
  • Tension Roll
  • Belt Alignment
  • Bridge Alignment
  • Trim Saver
  • Single face alignment


  • Decreased 90% electric charge
  • Better cardboard quality
  • Automated production
  • Increased production speed
  • Less downtime
  • Minimal edge trim
  • Saving 2-3 labors cost
  • Optimized lamination
  • Optimized paper in stock
  • Reduced wastage
  • Flexible production

Technical Specifications



Working width

Max:2240mm, 2540mm, 2840mm

Min:870mm, 1270mm, 1570mm.

Guiding Accuracy


Supply Voltage

220VAC 50HZ/60HZ

Max Power Consumption


Max Current Consumption


Control Voltage

24V DC

Protection Grade


Environmental Temperature

-20-max 40

Ari Temperature

20%-85%(No condensed water)



Technical data:


Wide Band Sensor

Sensor Resolution


Guiding Accuracy


Web Width Min. / Max

1600mm / 500mm

1900mm / 800mm

2200mm / 1100mm

2500mm / 1250mm

Other web width on demand

Guiding Mode

Web center line / bottom line

Applicative Machine Speed

Max 450m/min

Supply Voltage

220VAC 50HZ or clarify

Max Power Consumption


Guiding Accuracy

+/- 1mm

Correction speed

6mm / sec.

Correction stroke

max. +/- 75mm

Machine speed

400 m / min

Sensor support frame

Web pass width

max. 2.540 mm and min. 1.270mm

or max. 2.240 mm and min. 970mm

Frame weight


Infrared sensor


+/- 1 mm



Scan rate

max. 700Hz


Electrical enclosure

W x H x D: 800 x 1.600 x 300mm

Electrical connection

3 x 400 V 50Hz 3 x415 V 50Hz

3 x 200-540V 50-60Hz

3 x 460 V 60Hz 3 x 575 V 60Hz

Power consumption


Ambient temperature

max. 40

Air humidity

20-85%(no condense)

The right to technical modifications without notice is reserved.


Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 40 Units Per Month
  • Delivery Time
  • 12 Week
  • Packaging Details
  • 20 Feet Container.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE UL ISO 9001 Certified.
